INDUSTRIAL

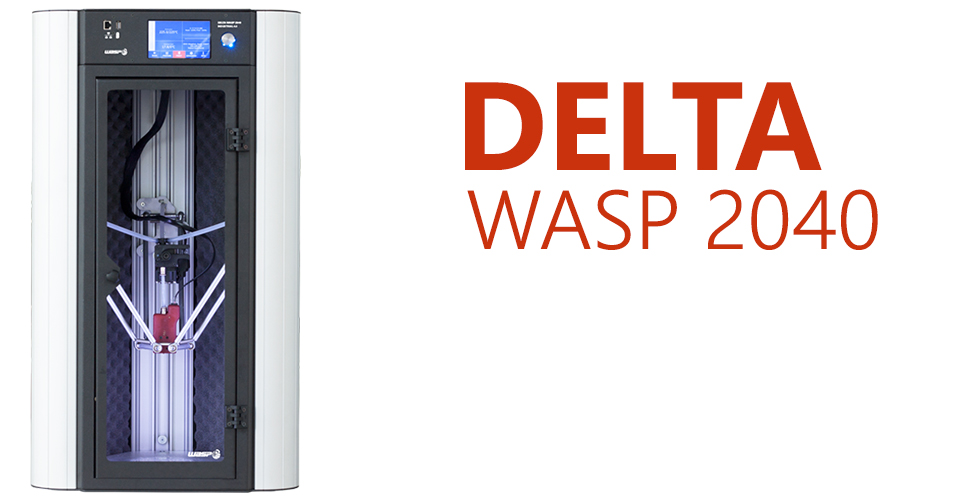

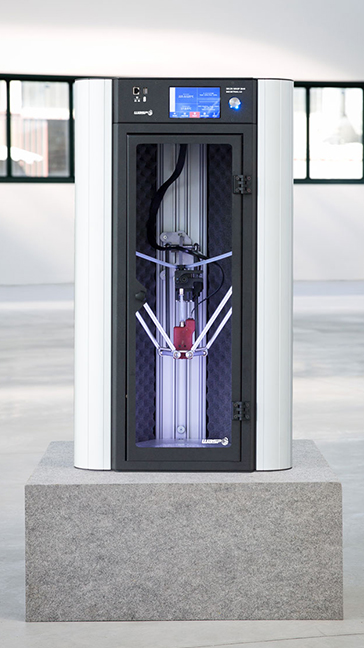

Delta WASP 2040
Delta WASP 2040 INDUSTRIAL 4.0
base price 3.490 €
Create quickly prints with the strongest technical materials with the delta industrial printer Delta WASP 2040 INDUSTRIAL 4.0. With the new system with hot chamber and cold mechanics printing technical materials it’s even easier. Delta WASP 2040 INDUSTRIAL 4.0 is the 3D printer optimized for printing technical materials.
TECHNICAL DETAILS
3D PRINTING INFORMATION
Build volume: Ø 200 x h 400 mm
Heated active chamber: heated up to 80°C
Minimum layer height: 50 micron
Print speed max(*): 500 mm/s
Travel speed max(*): 800 mm/s
Acceleration(*): 15.000 mm/s2
Bed temperature max: 120 C°
Extruder / Nozzle diameter standard: WASP SPITFIRE RED Extruder with LT cartridge, nozzle 0,4 mm
* All data relative to speed make reference to a Delta WASP 2040 Industrial 4.0 with WASP SPITFIRE RED Extruder 0.4
MATERIALS
Suitable filaments Ø1.75 with “SPITFIRE EXTRUDER” e “ZEN EXTRUDER” Ø2.85 with “FLEX EXTRUDER”
ASA
ABS
HIGH-IMPACT PS
PETG
TPU
TPE
POLYPROPYLENE
POLYCARBONATE
PC+ABS
PPS
PMMA
PVA
PA
PA carbon
PLA
CONFIGURABLE TOOLS
RED SPITFIRE EXTRUDER: extruder for fast and high-quality prints. Nozzle diameter: 0.4 mm, 0.7 mm, 1.2 mm (filament diameter 1.75 mm)
ZEN EXTRUDER: double extruder for multicolor or multimaterial prints. Nozzle diameter: 0.4 mm, 0.7 mm, 1.2 mm (filament diameter 1.75 mm)
FLEX EXTRUDER: direct driven extruder for flexible material down to 50 shore A. Nozzle diameter: 0.4 mm (filament diameter 3 mm)
SOFTWARE
Operative systems: Windows, Mac, Linux
Slicing software: compatible with all slicing software (Cura – SLic3r – Simplify3D®)
Software interface: Octoprint
File type: .stl, .obj, .gcode
INTERFACE
Pendrive USB
Wifi network
Display TFT touch
PHYSICAL DIMENSIONS
Dimensions: 49 cm x 44 cm x 87 cm
Machine weight:30 kg
Dimensions and weight for the packaging on pallet: 50 cm x 58 cm x 114 cm, weight 35 kg
SUPPLY
Input 220/240 V 50/60 Hz
Absorbed power: _WASP SPITFIRE RED Extruder:60 W max
_WASP ZEN Extruder: 120 W max
_Hot bed: max 1000 W
_Room heater: max 750 W / average 300 W
TEMPERATURE
Use 20-30 C°
Warehouse0-30 C°
MECHANICS
Frame and cover: aluminum, painted steed, polycarbonate, PU. Metal carters, defeats machine’s vibrations, allows a more precise machine
Bed:rectified aluminum
Movements: nylon wheels on anodized aluminum sliders delrin steel cored belts resistant to high temperature
Insulation: expanded polymer for thermo-acoustic insulation
Motors: Stepper
EXTRA
HOT & COLD TECHNOLOGY (cc) Heated chamber and cooling of the mechanics
RESURRECTION SYSTEM (cc)A system which allow users to save their print job and resume it in the case of power failure.
SUSPENDED BOWDEN (cc)It makes possible to download the inertia on the hanging rubber-bands, improving like that the printing speed and quality.
FREE ZETA SYSTEM (cc)It allows to print a file starting from a precise height of the model to be printed, height previously selected.
INCLUDED MATERIAL
1 WASP SPITFIRE RED Extruder Kit Spool holder 1 kg spool of PLA
Packaging for national/international shipping in cardboard box on pallet:50 x 58 x 114 cm, weight 35 kgDelivered in 5 weeks
INDUSTRIAL

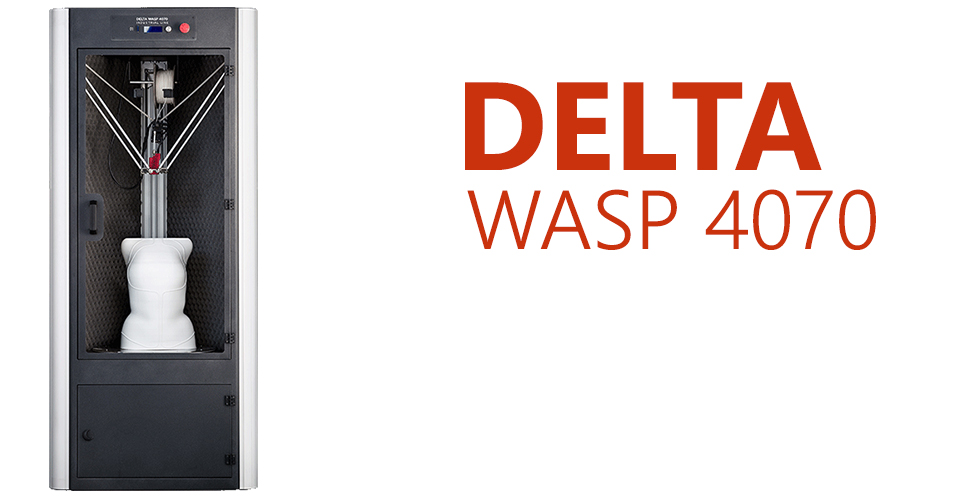

Delta WASP 4070
Delta WASP 4070 INDUSTRIAL 4.0
base price 10.250 €
It’s now possible to print big volumes with technical materials thanks to the best industrial 3D printer Delta WASP 4070 INDUSTRIAL 4.0. With the new system with hot chamber and cold mechanics printing technical materials it’s even easier.
TECHNICAL DETAILS
3D PRINTING INFORMATION
Build volume: Ø 400 x h 700 mm
Heated chamber: heated up to 80°C
Minimum layer height: 100 micron
Print speed max(*): 150 mm/s
Travel speed max(*): 200 mm/s
Acceleration(*):15.000 mm/s2
Bed temperature max: 120 C°
Nozzle diameter standard:WASP SPITFIRE RED Extruder with LT cartridge, nozzle 0,7 mm
* All data relative to speed make reference to a Delta WASP 4070 INDUSTRIAL 4.0 with WASP SPITFIRE RED Extruder 0.4 mm
MATERIALS
Suitable filamentsØ1.75 with “SPITFIRE EXTRUDER” e “ZEN EXTRUDER” Ø2.85 with “FLEX EXTRUDER”
ASA
ABS
HIGH-IMPACT PS
PETG
TPU
TPE
POLYPROPYLENE
POLYCARBONATE
PC+ABS
PPS
PMMA
PVA
PA
PA carbon
PLA
CONFIGURABLE TOOLS
RED SPITFIRE EXTRUDER: extruder for fast and high-quality prints. Nozzle diameter: 0.4 mm, 0.7 mm, 1.2 mm (filament diameter 1.75 mm)
ZEN EXTRUDER:double extruder for multicolor or multimaterial prints. Nozzle diameter: 0.4 mm, 0.7 mm, 1.2 mm (filament diameter 1.75 mm)
FLEX EXTRUDER:direct driven extruder for flexible material down to 50 shore A. Nozzle diameter: 0.4 mm (filament diameter 3 mm)
SOFTWARE
Operative systems: Windows, Mac, Linux
Slicing software: compatible with all slicing software (Cura – SLic3r – Simplify3D®)
Software interface: Octoprint
File type: .stl, .obj, .gcode
INTERFACE
Pendrive USB
Wifi network
Display TFT touch
PHYSICAL DIMENSIONS
Dimensions: 85 cm x 77 cm x 195 cm
Machine weight: 90 kg
Dimensions for shipping the machine with wooden packaging: 100 cm x 100 cm x 230 cm, weight 200 kg
SUPPLY
Input 220/240 V 50/60 Hz
Absorbed power:_WASP SPITFIRE RED Extruder:60 W max
_WASP ZEN Extruder: 120 W max
_Hot bed:max 1300 W
_Room heater: max 1500 W
TEMPERATURE
Use 20-30 C°
Warehouse0-30 C°
MECHANICS
Frame and cover: aluminum, painted steed, polycarbonate, PU. Metal carters, defeats machine’s vibrations, allows a more precise machine.
Bed: rectified aluminum
Movements: nylon wheels on anodized aluminum sliders delrin steel cored belts resistant to high temperature.
Insulation: expanded polymer for thermo-acoustic insulation.
Motors: Stepper.
EXTRA
Hot and Cold tecnology: heated chamber and cooling of the mechanics
WIFI:machine connected to the network for monitoring and control
New GUI:new touch interface with bigger TFT display
Camera on-board:for monitoring and timelapse
Remote intervention:WASP technicians can work from remote on your machine in case of issues
HOT & COLD TECHNOLOGY (cc)An efficient way of heating by two internal heat sources, makes possible to ensure work temperatures up to 80 °C, without burdening the mechanical parts of the machine.
RESURRECTION SYSTEM (cc)A system which allow users to save their print job and resume it in the case of power failure.
SUSPENDED BOWDEN (cc)It makes possible to download the inertia on the hanging rubber-bands, improving like that the printing speed and quality.
FREE ZETA SYSTEM (cc)It allows to print a file starting from a precise height of the model to be printed, height previously selected.
INCLUDED MATERIAL
1 WASP SPITFIRE RED Extruder Kit 1kg of PLA in spool Packaging for national/international shipping in wooden box (100 cm x 100 cm x 230 cm, peso 200 kg).
Delivered in 4 weeks

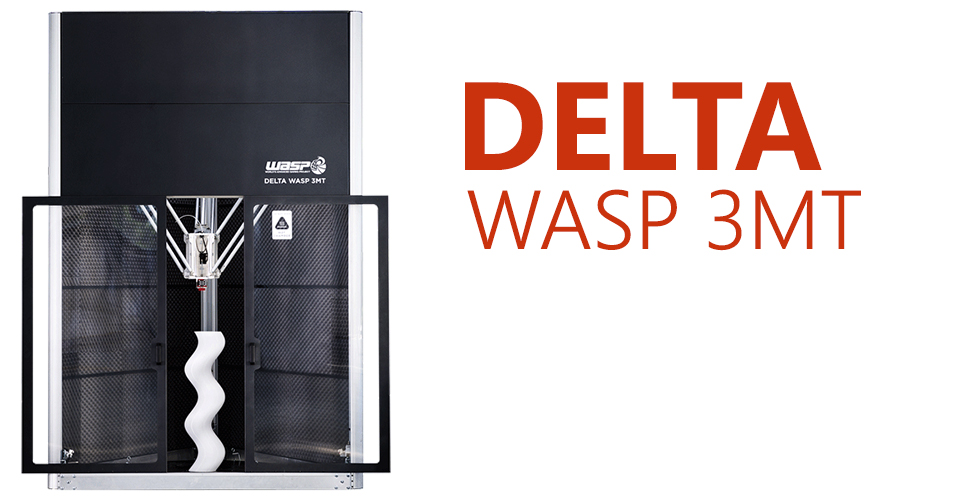

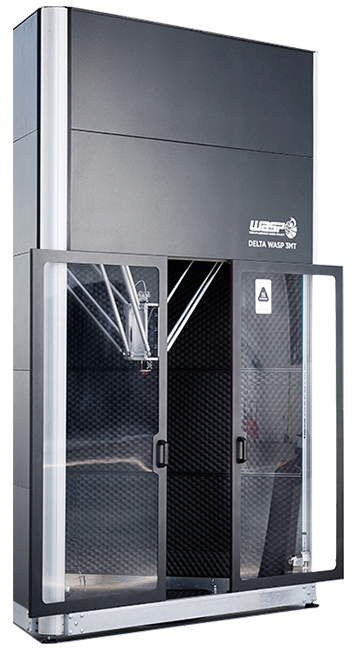

Delta WASP 3MT INDUSTRIAL 4.0
base price 25.900* €
With a closed build area of big dimension and its unique versatility, the professional 3D printer Delta WASP 3MT INDUSTRIAL 4.0 defines a new standard in the world of additive manufacturing. Today develop with a auto feeder pellet tank, an end pellet sensor for an even more reliable and always on print. It has a powerful extruder for technical and recycled materials.
* With WASP SPITFIRE RED Extruder
TECHNICAL DETAILS
3D PRINTING INFORMATION
Build volume Ø 400 x h 700 mm
Minimum layer height with filament 100 micron
Minimum layer height with pellet 500 micron
Pellet used Ø from 2 to 6 mm
FIlament used Ø 1.75 mm
Print speed max(*)200 mm/s
Travel speed max(*)400 mm/s
Acceleration(*)150 mm/s2
Bed temperature max110 C°
* All data relative to speed make reference to a Delta WASP 3MT INDUSTRIAL 4.0 with SPITFIRE RED Extruder
MATERIALS
Suitable materials Filament Ø1.75 with “SPITFIRE RED Extruder”
PelletØ 2-6 with “PELLET Extruder”
PLA
ABS
PETG
TPU
POLYPROPYLENE
PA
CONFIGURABLE TOOLS
WASP SPITFIRE RED Extruderextruder for precise and high-quality prints Nozzle diameter: 1.2 mm (filament diameter 1.75 mm)
WASP PELLET Extruderextruder for big and fast prints Nozzle diameter: 3 mm (pellet diameter 2-6 mm)
SOFTWARE
Operative system WIndows, Mac, Linux
Simplify3D® license included, compatible with all slicing softwares(Cura – SLic3r)
File type .stl, .obj, .gcode
INTERFACE
Pendrive USB
Wifi network
Display TFT touch
PHYSICAL DIMENSIONS
Dimensions 215 cm x 235 cm x 305 cm
Machine weight250 kg The machine travels disassembled and it’s assembled in the work space Space required to assembly the printer: 5.5 mt 2.5 mt x h 3.60 mt.
Packaging in wooden box for national/international shipping Box A 310 x 60 x 55 cm
Box B227 x 60 x 136 cm
SUPPLY
Input 220/240 V 50/60 Hz
Absorbed power: _Pellet Extruder:660 W max
_SPITFIRE RED Extruder:60 W max
_Hot pad:max 1600 W
_Drivers:max 200 W
TEMPERATURE
Use 20-30 C°
Warehouse0-30 C°
MECHANICS
Frame and cover aluminum, painted steed, polycarbonate, PU. Metal carters, defeats machine’s vibrations, allows a more precise machine.
Bed: rectified aluminum
Movements nylon wheels on anodized aluminum sliders, steel cored belts in delrin resistant to high temperature
Insulation: expanded polymer for thermal and acoustic insulation
Motors: Stepper
EXTRA
RESURRECTION SYSTEM (cc) The system recovers automatically interrupted prints in case of accidental shutdown or blackouts. Read more about Resurrection System
FREE ZETA SYSTEM (cc)It’s possible to measure the height of interruption of the print and restart from there. Read more about Free Z-System
INCLUDED MATERIAL
PELLET EXTRUSION SYSTEM3 bins of 7,5 kg of PLA in pellet (tot. 22,5kg)
SPITFIRE EXTRUSION SYSTEM1 spool of 1kg (PLA)
Packaging in wooden box for national/international shipping Box A310 x 60 x 55 cm
Box B227 x 60 x 136 cm
The machine travels disassembled and it’s assembled in the work area. Space required to assembly the printer: 5.5 mt 2.5 mt x h 3.60 mt.
Delivered in 8 weeks

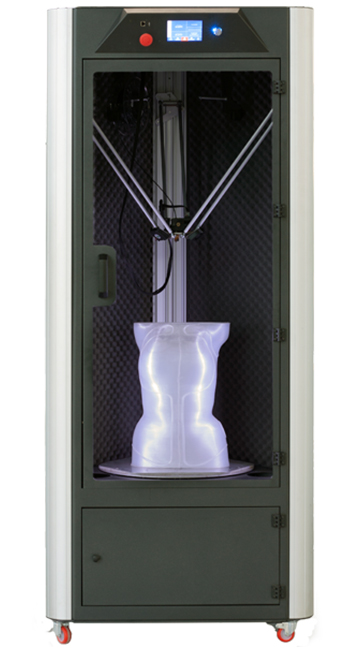

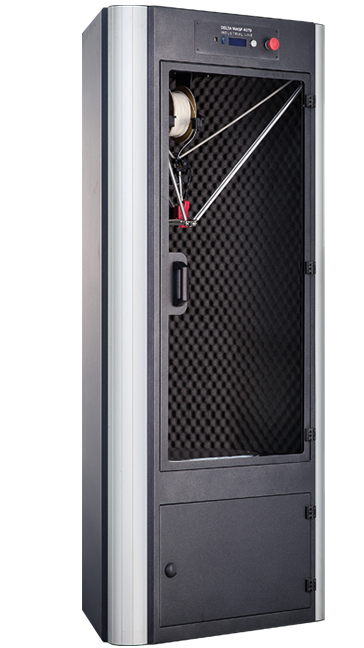

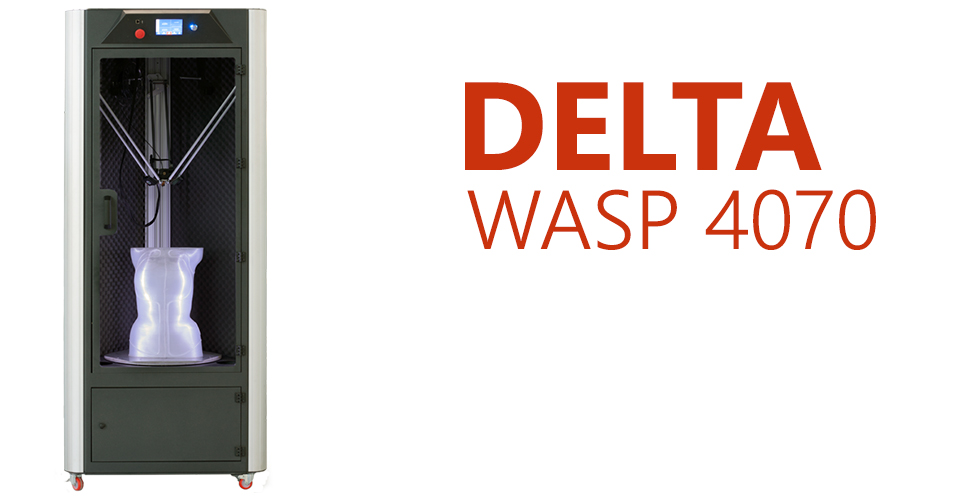

Delta WASP 4070 INDUSTRIAL
base price 8.200 €
You can now print big volumes with technical materials thanks to the industrial 3d printer, Delta WASP 4070 INDUSTRIAL. With its superior closed chamber and enhanced mechanics there’s no impossible print.
TECHNICAL DETAILS
3D PRINTING INFORMATION
Build volume: Ø 400 x h 700 mm
Heated chamber: closed and insulated
Minimum layer height:100 micron
Print speed max(*):150 mm/s
Travel speed max(*): 200 mm/s
Acceleration(*):15.000 mm/s2
Bed temperature max:120 C°
Nozzle diameter standard: WASP SPITFIRE RED Extruder with LT cartridge, nozzle 0,7 mm
* All data relative to speed make reference to a Delta WASP 4070 INDUSTRIAL with WASP SPITFIRE RED Extruder
MATERIALS
Suitable filamentsØ1.75 with “WASP SPITFIRE RED Extruder” e “WASP ZEN Extruder” Ø2.85 with “WASP FLEX Extruder”
ASA
ABS
HIGH-IMPACT PS
PETG
TPU
TPE
POLYPROPYLENE
POLYCARBONATE
PC+ABS
PPS
PMMA
PVA
PA
PA carbon
PLA
CONFIGURABLE TOOLS
WASP SPITFIRE RED Extruder: extruder for fast and high-quality prints. Nozzle diameter: 0.4 mm, 0.7 mm, 1.2 mm (filament diameter 1.75 mm)
WASP ZEN Extruder: double extruder for multicolor or multimaterial prints. Nozzle diameter: 0.4 mm, 0.7 mm, 1.2 mm (filament diameter 1.75 mm)
WASP FLEX Extruder:direct driven extruder for flexible material down to 50 shore A. Nozzle diameter: 0.4 mm (filament diameter 3 mm)
SOFTWARE
Operative systems: Windows, Mac, Linux
Slicing software: compatible with all slicing software (Cura – SLic3r – Simplify3D®)
Software interface: Printrun – Repetier Host
File type: .stl, .obj, .gcode
INTERFACE
SD card
Display LCD
PHYSICAL DIMENSIONS
Dimensions: 85 cm x 77 cm x 195 cm
Machine weight:90 kg
Dimensions for shipping the machine with wooden packaging: 100 cm x 100 cm x 230 cm, weight 200 kg
SUPPLY
Input 220/240 V 50/60 Hz
Absorbed power: _WASP SPITFIRE RED Extruder:60 W max
_WASP ZEN Extruder: 120 W max
_Hot bed:max 1300 W
_Room heater: max 1500 W
TEMPERATURE
Use 20-30 C°
Warehouse0-30 C°
MECHANICS
Frame and carter: aluminum, painted steel, polycarbonate, PU. Carters in metal sheet (lower the vibrations of the machine granting the best print quality)
Heated platform:Rectified aluminum
Movements: nylon wheels on anodized aluminum
Motors: Stepper
EXTRA
RESURRECTION SYSTEM (cc) A system which allow users to save their print job and resume it in the case of power failure.
SUSPENDED BOWDEN (cc)It makes possible to download the inertia on the hanging rubber-bands, improving like that the printing speed and quality.
FREE ZETA SYSTEM (cc)It allows to print a file starting from a precise height of the model to be printed, height previously selected.
INCLUDED MATERIAL
1 WASP SPITFIRE RED Extruder Kit 1 kg of PLA in spool Packaging for national/international shipping in wooden box (100 cm x 100 cm x 230 cm, weight 200 kg).
Delivered in 4 weeks
