CLAY

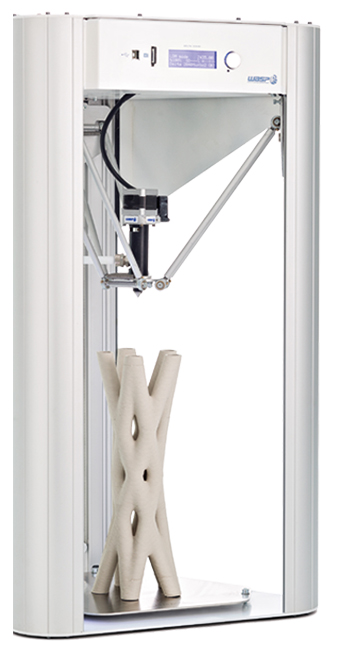

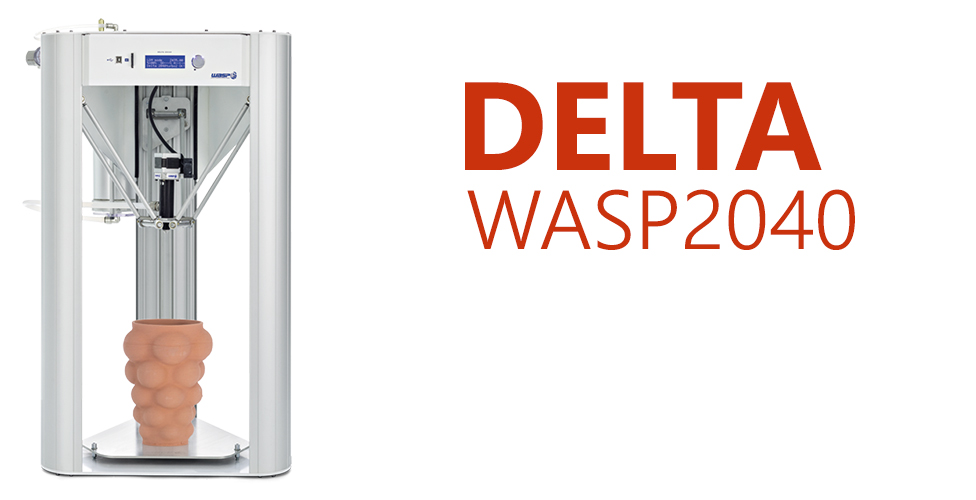

Delta WASP 2040 Clay

base price 3.000 €

Accurate and fast using all ceramic materials. Clay 3D printer 0pen and accessible on three sides to interact during the prints. Compact professional clay 3D printer, prints up to 40 cm in height.

TECHNICAL DETAILS

3D PRINTING INFORMATION

Printing volume: Ø200mm x h400 mm;

Minimum layer height: 0,5 mm;

Maximum print speed: 150 mm/s;

Maximum travel speed: 150 mm/s;

Acceleration: 500 mm/s2;

MATERIALS

Material: ceramic mixtures

_Clay

_Porcelain

_Gres

_Earthenware

_Other

CONFIGURABLE TOOLS

LDM WASP extruder: with 1,2 mm and 2 mm nozzle (standard)

SOFTWARE

Operative systems: WIndows, Mac, Linux;

Slicing software: compatible with all slicing software (Cura – SLic3r – Simplify3D®);

File type .stl, .obj, .gcode;

INTERFACE

SD cards

LCD Screen

PHYSICAL DIMENSIONS

Dimensions: 44 cm x 49 cm x h 87 cm;

Machine weight:40 kg;

Dimensions and weight for the cardboard packaging on pallet: 50 cm x 58 cm x 101 cm, weight 50 kg.

SUPPLY

Input 220/240 V 50/60 Hz;

Absorbed power:180 W

N.B.: air compressor needed (min. pressure 8 bar)

TEMPERATURE

Use 20-30 C°

Warehouse0-30 C°

MECHANICS

Frames and carters: metal sheet (lowers the machine vibrations, grants the best print quality), aluminum, painted steel

Print bed:bed in wooden multi-layer

Movements: guides on anodized aluminum Open sides give the possibility to stop the printer and interact with the part during the print

EXTRA

RESURRECTION SYSTEM A system which allow users to save their print job and resume it in the case of power failure..Read more about Resurrection System

FREE Z-SYSTEMThe machine measures the height of interruption of the print and it restarts there. Read more about Free Z-System

INCLUDED MATERIAL

1 LDM Wasp extruder with nozzle in inox steel diam. 1,2 mm and 2 mm. 1 tank 3L 1 printing bed in marine multilayered 10 kg of porcelain

Dimensions and weight for the cardboard packaging on pallet:50 cm x 58 cm x 101 cm, weight 50 kgDelivered in 4 weeks

CLAY

Delta WASP 40100

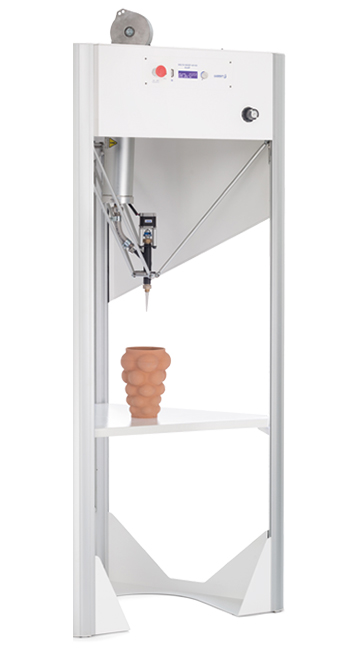

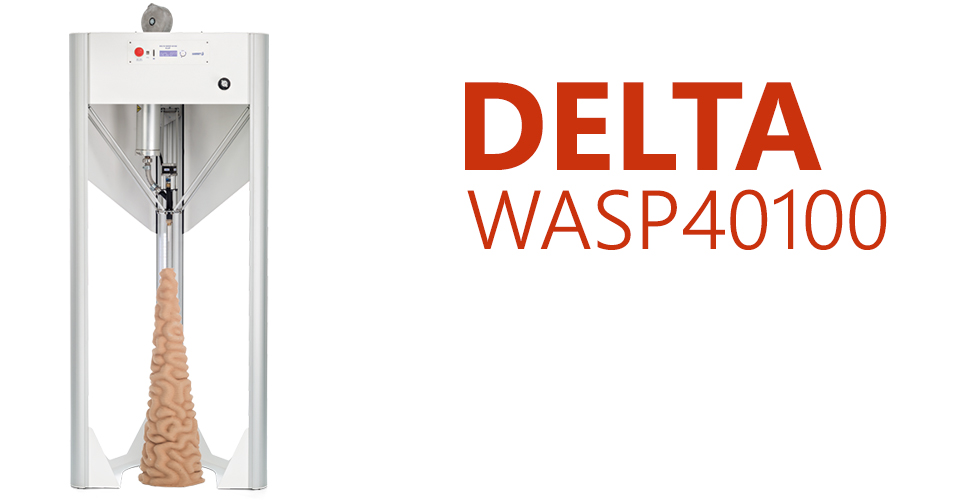

Delta WASP 40100 Clay

base price 6.900 €

Accurate and fast using all ceramic materials. Ceramic 3d printer open and accessible on three sides to interact during the prints. With Delta WASP 40100 Clay is possible to print directly on the floor or on a printing surface removable steel. You can also continue printing without waiting for the piece to dry and simply by moving the printer. LDM WASP Extruder XL compatible, extruder ideal for fast and large prints.

TECHNICAL DETAILS

3D PRINTING INFORMATION

Printing volume: Ø 400mm x h 1000 mm; (h 450 mm with interim plate)

Minimum layer height: 0,5 mm;

Maximum printing speed: 150 mm/s;

Maximum travel speed: 150 mm/s;

Acceleration: 500 mm/s2;

MATERIALS

Material:

Porcelain

Earthenware

Gres

Refractory

Materials

Clays Etc

CONFIGURABLE TOOLS

LDM WASP Extruder: 1,2 mm, 2 mm nozzle diameter (standard)

LDM WASP Extruder XL: 2 mm, 4 mm, 6 mm, 8 mm nozzle diameter

SOFTWARE

Operative systems: WIndows, Mac, Linux;

Slicing software: compatible with all slicing software (Cura – SLic3r – Simplify3D®);

File type: .stl, .obj, .gcode;

INTERFACE

SD cards

Schermo LCD;

PHYSICAL DIMENSIONS

Dimensions: 77 cm x 85 cm x h 195 cm (h 270 cm with tank support)

Machine weight: 80 kg

Dimensions for shipping the machine with wooden packaging: 100 cm x 100 cm x 230 cm, weight 130 kg
