DELTA FAMILY

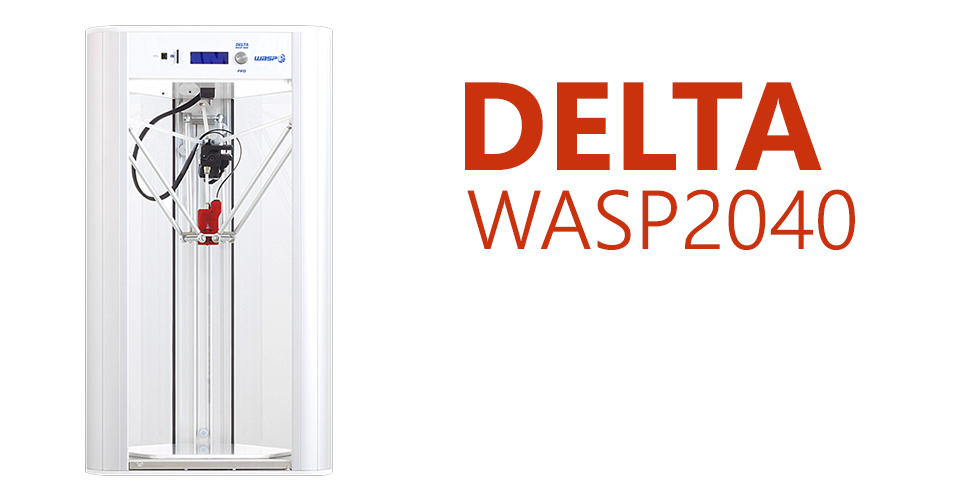

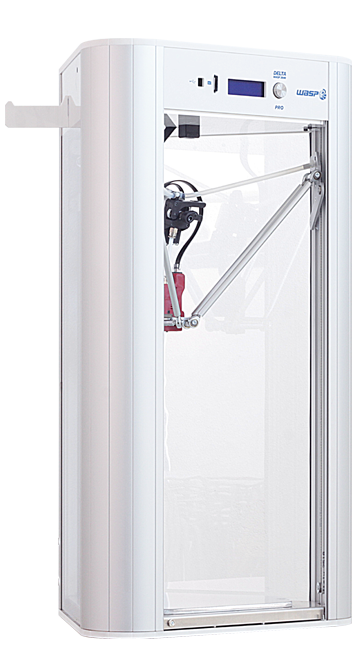

Delta WASP 2040 PRO
Delta WASP 2040 PRO
base price 2.370 €
Delta WASP 2040 become PRO.
All the qualities of the TURBO2 in the entry level icon of WASP.
Accurate and reliable on all materials with pieces up to 40 cm. Delta WASP 2040 PRO is the powerful and versatile delta 3D printer you need everyday.
TECHNICAL DETAILS
3D PRINTING INFORMATION
Build volume Ø200 x h 400 mm
Minimum layer height 50 micron
Print speed max(*) 500 mm/s
Travel speed max(*) 800 mm/s
Acceleration(*) 15.000 mm/s2
Bed temperature max 110 C°
Extruder / Nozzle diameter standard WASP SPITFIRE RED Extruder with LT cartridge, nozzle 0,4 mm
* All data relative to speed make reference to a Delta WASP 2040 PRO with WASP SPITFIRE RED Extruder 0.4
MATERIALS
Suitable filaments Ø1.75
PLA
PETG
ABS
PA Carbon
CONFIGURABLE TOOLS
RED SPITFIRE Extruder extruder for high-quality fast prints
Nozzle diameter: 0.4 mm, 0.7 mm, 1.2 mm (filament diameter 1.75 mm)
LDM WASP Extruderextruder for dense-fluid meterials
Nozzle diameter: 1.2 mm
SOFTWARE
Operative systems Windows, Mac, Linux
Slicing software compatible with all slicing softwares (Cura – SLic3r – Simplify3D®)
File type .stl, .obj, .gcode
INTERFACE
SD cards
LCD screen
PHYSICAL DIMENSIONS
Dimensions 49 cm x 44 cm x 87 cm
Machine weight25 kg
Dimensions and weight for the cardboard packaging 50 cm x 58 cm x 101 cm, weight 30 kg
SUPPLY
Input 220/240 V 50/60 Hz
Absorbed power:_WASP SPITFIRE RED Extruder60W max
_Hot bed max 500 W
TEMPERATURE
Use 20-30 C°
Warehouse0-30 C°
MECHANICS
Frame and cover aluminum, polycarbonate, PMMA.
Bedrectified aluminum
Movements nylon wheels on anodized aluminum sliders, steel cored belts in TPU resistant to high temperature
Motors Stepper
EXTRA
RESURRECTION SYSTEM (cc) The system recovers automatically interrupted prints in case of accidental shutdown or blackouts. Read more about RESURRECTION SYSTEM
FREE Z SYSTEM (cc)It’s possible to measure the height of interruption of the print and restart from there. Read more about FREE Z SYSTEM
SUSPENDED BOWDEN (cc) It makes possible to download the inertia on the hanging rubber-bands, improving like that the printing speed and quality. Read more about SUSPENDED BOWDEN
INCLUDED MATERIAL
1kg of PLA in spool Packaging for national/international in cardboard box 58 cm x 50 cm x 101 cm
Delivered in 4 weeks
DELTA FAMILY

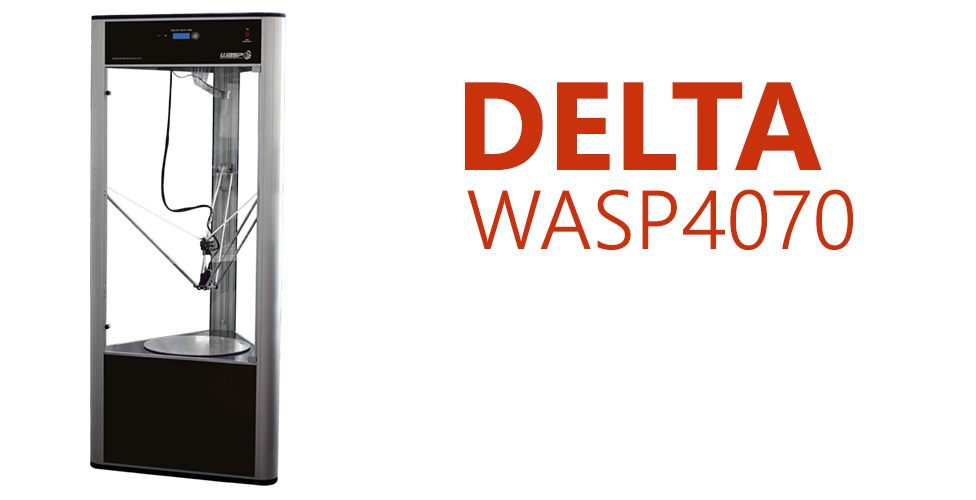

Delta WASP 4070
Delta WASP 4070
base price 5.800 €
The ideal printer for anyone who wants to start a small series production or for internal fast prototyping of new products. Delta WASP 4070 is a large scale 3D printer that guarantees rapidity and accuracy on a microscopic and macroscopic scale.
TECHNICAL DETAILS
3D PRINTING INFORMATION
Print volume: Ø 400 mm x h 670 mm
Print chamber: closed
Minimum layer height: 100 micron
Maximum printing speed: 200 mm/s*
Maximum travel speed: 200 mm/s*
Acceleration: 3.000 mm/s2*
Maximum bed temperature: 110 C°
* All data relative to speed make reference to a Delta WASP 4070 with WASP SPITFIRE BLACK Extruder.
MATERIALS
Filaments: Ø1.75
PLA
ABS
PETG
PA Carbon
CONFIGURABLE TOOLS
WASP SPITFIRE BLACK Extruder: extruder for high-quality fast prints. Nozzle diameter: 0.4 mm, 0.7 mm, 1.2 mm (filament diameter 1.75 mm)
LDM WASP Extruder: extruder for fluid-dense materials.
Nozzle diameter: 1.2 mm
SOFTWARE
Operative System: WIndows, Mac, Linux
Slicing software: Cura – SLic3r – Simplify3D®
File type: .stl, .obj, .gcode
INTERFACE
SD cards
Display LCD
PHYSICAL DIMENSIONS
Dimensions: 85 x 77 x 199 cm
Machine weight: 50 kg
Dimensions and weight for the packaging in wooden box: 100 x 100 x 230 cm, weight 160 kg
SUPPLY
Input 220/240 V 50/60 Hz
Absorbed power: _WASP SPITFIRE BLACK Extruder:max 60 W
_Hot bed: max 550 W
TEMPERATURE
Use 20-30 C°
Warehouse0-30 C°
MECHANICS
Frame and cover: Aluminium, polycarbonate and wood
Print bed:Stainless steel
Movements: low-friction guides on aluminium slides;
EXTRA
RESURRECTION SYSTEM (cc) A system which allow users to save their print job and resume it in the case of power failure. Read more about Resurrection System
SUSPENDED BOWDEN (cc)It makes possible to download the inertia on the hanging rubber-bands, improving like that the printing speed and quality. Read more about Suspended Bowden
INCLUDED MATERIAL
Spool holder 1 kg spool of PLA Packaging for national/international shipping in wooden box (100 x 100 x 230 cm)Delivered in 4 weeks
DELTA FAMILY
Delta WASP 4070

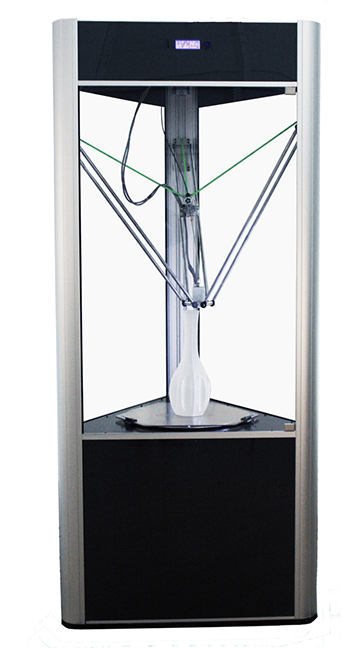

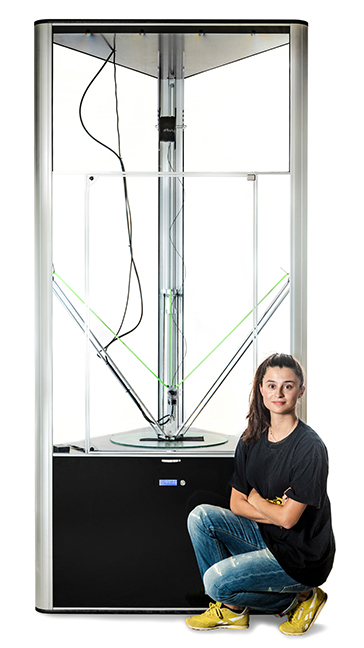

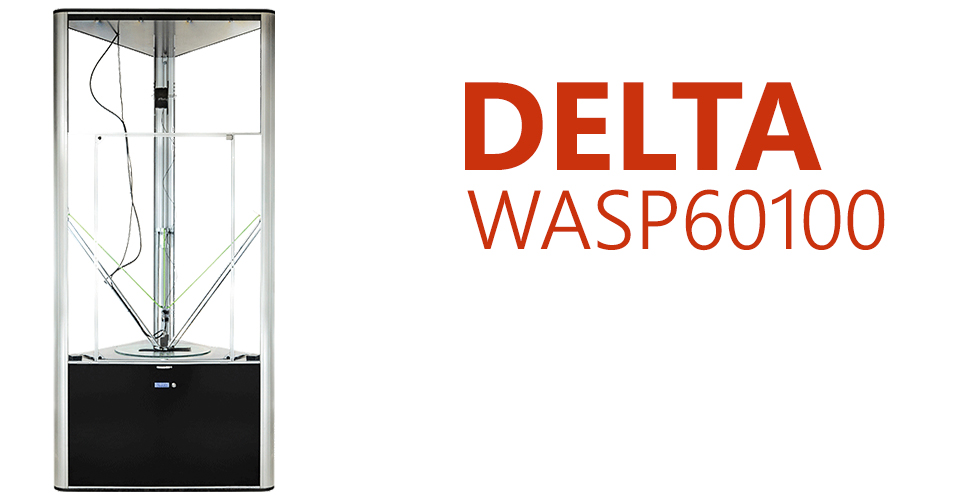

Delta WASP 60100
base price 12.500 €
Delta WASP 60100 Developed for those who need huge size prints that are also rapid and precise. Thought for Companies that intend to start small series internal productions and rapid prototyping activities.
TECHNICAL DETAILS
3D PRINTING INFORMATION
Print volume: Ø 600 mm x h 1000 mm
Print chamber: closed and heated
Minimum layer height: 100 micron
Maximum print speed: 200 mm/s*
Maximum printing speed: 200 mm/s*
Acceleration: 3.000 mm/s2*
Maximum bed temperature: 120 C°
* All data relative to speed make reference to a Delta WASP 60100 with WASP SPITFIRE BLACK Extruder.
MATERIALS
Filaments: 1.75 mm di diameter:
PLA
ABS
PETG
PA Carbon
CONFIGURABLE TOOLS
BLACK SPITFIRE EXTRUDER: extruder for high-quality fast prints
Nozzle diameter: 0.4 mm, 0.7 mm, 1.2 mm (filament diameter 1.75 mm)
LDM WASP EXTRUDER:extruder for dense-fluid material
Nozzle diameter: 1.2 mm
SOFTWARE
Operative systems: Windows, Mac, Linux
Slicing software: compatible with all slicing softwares (Cura – SLic3r – Simplify3D®)
File type: .stl, .obj, .gcode
INTERFACE
SD cards
LCD Screen
PHYSICAL DIMENSIONS
Dimensions: 118 x 104 x 254 cm
Machine weight: 100 kg
Dimensions for the shipping in wooden packaging: 292 cm x 132 cm x 127 cm, weight 250kg
SUPPLY
Input: 220/240 V 50/60 Hz
Absorbed power: _WASP SPITFIRE BLACK Extruder:max 60 W
_Hot bed: max 1650 W
TEMPERATURE
Use 20-30 C°
Warehouse0-30 C°
MECHANICS
Frame and cover: Aluminium, polycarbonate, and wood
Print bed:Stainless steel
Movements: sliding-system on bearings on aluminum slides
EXTRA
RESURRECTION SYSTEM A system which allow users to save their print job and resume it in the case of power failure. Read more about Resurrection System
FREE Z-SYSTEMThe machine measures the height of interruption of the print and it restarts there. Read more about Free Z-System
INCLUDED MATERIAL
Spool holder 1 kg spool of PLA Packaging for national/international shipping in wooden box (292 x 132 x 127 cm)Delivered in 4 weeks
