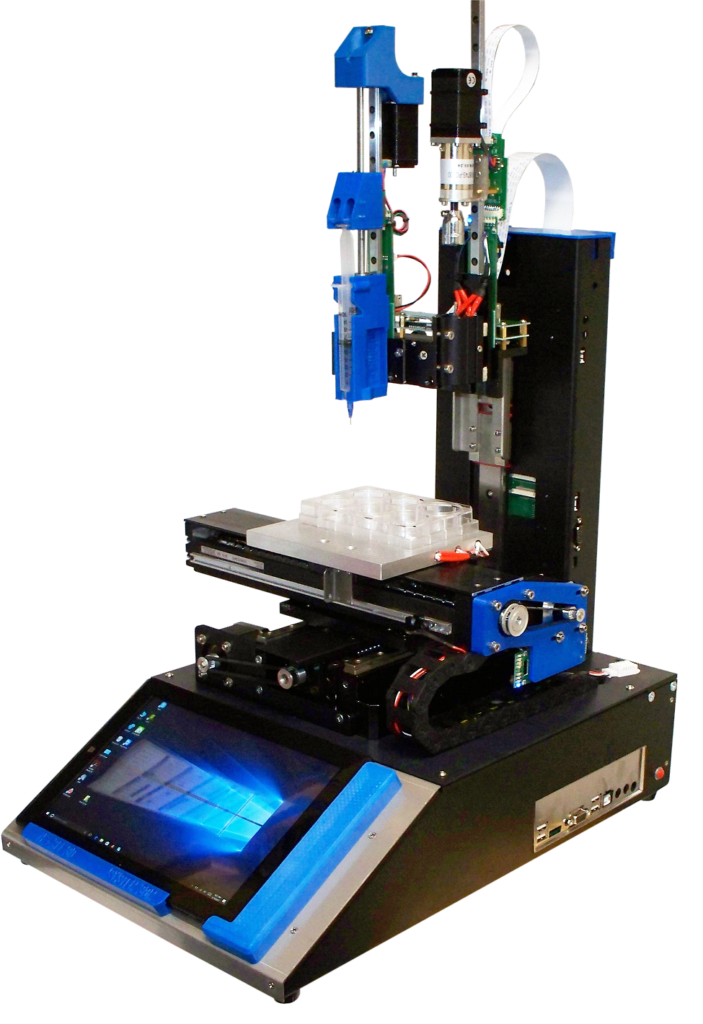

ENGINE HR - HIGH RESOLUTION

High Reliability - Low Maintenance - High Uptime - High Resolution

Designed specifically with the needs of the Bioplotting / Bioprinting community in mind!

Works with all Hyrel print heads, allowing you to work with numerous materials, including Clay, Plasticine, Sugru, Silicone RTV, porcelain, etc.

Designed with safety in mind

Rugged, all-metal design

Includes interchangeable mounting system

State-of-the-art, plug-and-play electronics (Gib System)

Ready for upgrade/expansion options

Compatible with large volume extruders

Please note that thermoplastics like ABS, PLA, Nylon, NinjaFlex,

FilaFlex, etc. do much better with a heated enclosure.

1.25 micron (or better) resolution in all axes.

BUILD VOLUME

X Axis 100 mm

Y Axis 100 mm

Z Axis 100 mm

POSITIONAL ACCURACY:

X Axis +/- 12 microns

Y Axis +/- 12 microns

Z Axis +/- 10 microns

POSITIONAL RESOLUTION:

X Axis 1.25 microns

Y Axis 1.25 microns

Z Axis 1 micron

CHASSIS:

Powder-coated Steel & Anodized Aluminum (no enclosure)

ELECTRONICS:

State-of-the-art 150+ MHz 32-bit ARM processor

Modular, micro-stepping motor-drivers with closed-loop encoding

Integrated, Dual CAN-bus architecture

“Smooth Move” motion control technology firmware

Integrated camera

MOTION CONTROL:

Precision Ball Screw in Z-axis

Precision Linear Bearing System in X, Y, and Z Axes

TABLET PC:

USB: Four USB 2.0 Ports (External)

WLAN: WiFi Capable

OUT OF THE BOX:

Weight: 55 lbs / 25 kgs

Width: 13 in / 33 cm

Depth: 19 in / 48 cm

Height: 20in / 51 cm

ATX POWER SUPPLY SPECS:

Power: 750 W

Voltage: 115 / 230 V

Current: 16 / 8 A

Frequency: 60 / 50 Hz

Physical On/Off Switch: Yes

IEC-60320 C14 connector

IEC-60320 C13-to-NEMA 15 Power Cable

US Standard (International must supply own)

HOT FLOW HEADS:

MK1-250

MK2-250

MK1-450

COLD / WARM FLOW HEADS:

EMO-25, COD-25

VOL-25, VCD-25

KRA-15, KCD-15

SYRINGE HEADS:

SDS-5, CSD-5

SDS-10, CSD-10

SDS-30, CSD-30

SDS-60, CSD-60

OTHER HEADS:

Spindle Tool

Lasers

Extra Cooling Fan

Microscope
