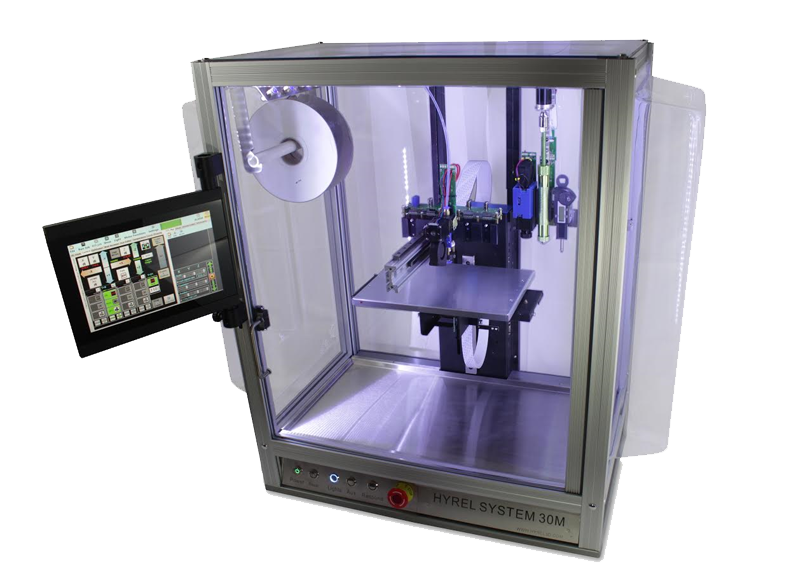

SYSTEM 30M

High Reliability - Low Maintenance - High Uptime - Enclosure

Protect your builds from outside environmental changes

Enclosed build environment and filament storage

Works with all Hyrel print heads, allowing you to work with numerous materials, including Clay, Plasticine, Sugru, Silicone RTV, porcelain, ABS, PLA, Nylon, NinjaFlex, FilaFlex and more!

Designed with safety in mind

Rugged, all-metal design

Includes interchangeable mounting system

State-of-the-art, plug-and-play electronics (Gib System)

Ready for upgrade/expansion options

Compatible with large volume extruders

BUILD VOLUME

X Axis 225 mm

Y Axis 200 mm

Z Axis 200 mm

POSITIONAL ACCURACY:

X Axis +/- 50 microns

Y Axis +/- 50 microns

Z Axis +/- 10 microns

POSITIONAL RESOLUTION:

X Axis 5 microns

Y Axis 5 microns

Z Axis 1 micron

CHASSIS & ENCLOSURE:

Powder-coated Steel & Anodized Aluminum

Plastic Windows

ELECTRONICS:

State-of-the-art 150+ MHz 32-bit ARM processor

Modular, micro-stepping motor-drivers

Integrated, Dual CAN-bus architecture

“Smooth Move” motion control technology firmware

Integrated web camera for build area monitoring

MOTION CONTROL:

Precision Ball Screw in Z-axis

IKO Linear Bearing System in X, Y, and Z Axes

TABLET PC:

USB: Four USB 2.0 Ports (External)

WLAN: WiFi Capable

OUT OF THE BOX, DOORS OPEN & LCD FULLY-EXTENDED

Weight: 50 lbs / 23 kgs

Width: 40 in / 97 cm

Depth: 16 in / 41 cm

Height: 31 in / 79 cm

OUT OF THE BOX, DOORS CLOSED & LCD FULLY RETRACTED

Weight: 50 lbs / 23 kgs

Width: 35 in / 89 cm

Depth: 16 in / 41 cm

Height: 31 in / 79 cm

ATX POWER SUPPLY SPECS:

Power: 750 W

Voltage: 115 / 230 V

Current: 16 / 8 A

Frequency: 60 / 50 Hz

Physical On/Off Switch: Yes

IEC-60320 C14 connector

IEC-60320 C13-to-NEMA 15 Power Cable

US Standard (International must supply own)

HOT FLOW HEADS:

MK1-250

MK2-250

MK1-450

COLD / WARM FLOW HEADS:

EMO-25, COD-25

VOL-25, VCD-25

KRA-15, KCD-15

SYRINGE HEADS:

SDS-5, CSD-5

SDS-10, CSD-10

SDS-30, CSD-30

SDS-60, CSD-60

OTHER HEADS:

Spindle Tool

Lasers

Extra Cooling Fan

Microscope
